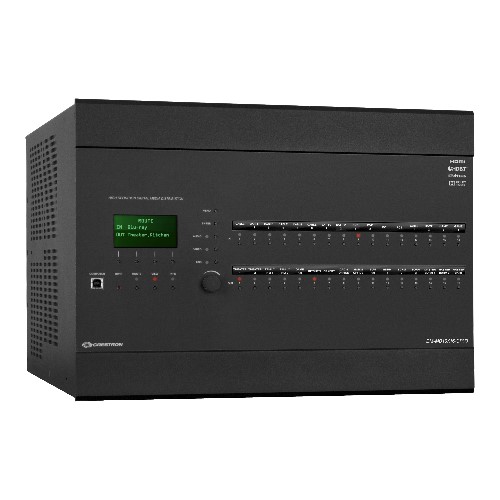

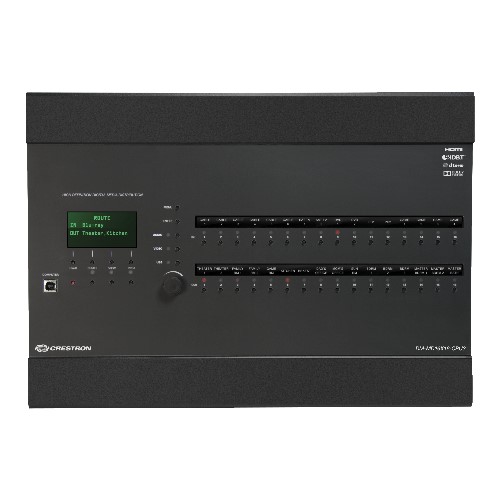

A fully modular and expandable 16x16 DigitalMedia matrix switcher offering ultra-fast digital video and audio switching and lossless HD multiroom signal distribution for all types of AV sources. Based on the 3-Series® platform. Provides complete management of SD, HD, UHD, 2K, 4K60 4:4:4 HDR, and computer signals with advanced HDCP support, EDID resolution management, CEC signal management, USB signal routing, integrated Ethernet switch, simultaneous 7.1 and stereo audio, H.264 streaming, and a full range of selectable input and output types.

Features

• Delivers a unified HD signal distribution solution incorporating both point-to-point wired and IP streaming technologies
• Provides lossless HD AV signal routing over twisted pair copper wire or fiber
• Integrates video, audio, networking, and control over one wire or fiber strand
• Enables high-performance H.264 streaming from any input source up to 1080p or WUXGA
• Provides a built-in CONTENT LAN port for streaming
• Affords full matrix switching with ultra high 12.5 Gbps backplane data rate
• Handles HDMI® with Deep Color, 3D, 4K, and high-bitrate 7.1 encoded audio
• HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
• HDCP 2.2 compliant via compatible 4K input and output cards
• Distributes Full HD 1080p, Ultra HD, and 4K signals over CAT type twisted pair cable at distances up to 330 ft (100 m) via DM 8G+® and HDBaseT
• Distributes 1080p and WUXGA signals over multimode fiber at distances up to 1000 ft (300 m) via DM 8G® Fiber
• Distributes 1080p and WUXGA signals over single-mode fiber at distances up to 7.5 miles (12 km) via DM 8G SM Fiber
• Allows streaming of 1080p signals over an IP network with no distance limitations
• Also supports all first-generation DM® CAT and DM Fiber products
• Configurable with up to 16 DM, HDBaseT, and/or HDMI outputs
• Configurable with up to eight streaming outputs
• Easy output expansion using multiple DM switchers

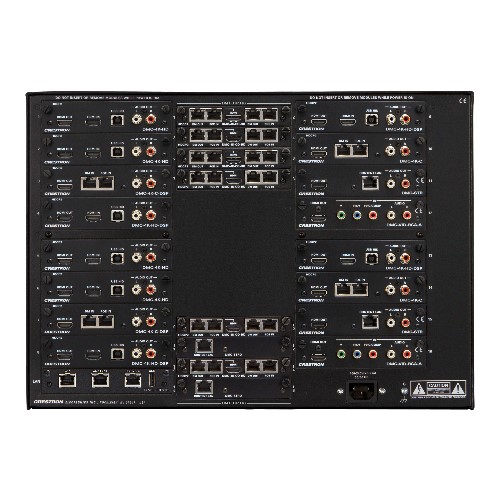

• Modular inputs support a complete range of digital, analog, and streaming signal types
• QuickSwitch HD™ technology manages HDCP keys for fast, reliable switching
• Auto-Locking® technology achieves rapid switching between disparate sources
• Detects and displays detailed video and audio input information
• Performs automatic AV signal format management via EDID
• Allows independent scaling for every display through select output cards and DM receivers
• Enables device control via CEC
• Distributes and routes USB HID mouse and keyboard signals
• Expanded USB routing capabilities available using USB over Ethernet Extenders
• Allows full audio and USB breakaway switching
• Supports analog audio embedding and de-embedding
• Integrates with analog audio distribution systems
• Enables simultaneous output of stereo and surround sound audio
• Includes integrated Ethernet switch with Gigabit LAN port
• Private Network Mode — requires just one IP address for the complete DM system
• Secure access through full user/group management or Active Directory® credential management integration
• Hardware level security using 802.1X authentication
• TLS, SSL, SSH, and SFTP network security protocols
• Provides easy setup and diagnostics tools via front panel or software
• Includes a built-in web server
• Half-million hour rated internal universal power supply
• 7-space 19-inch rack-mountable
