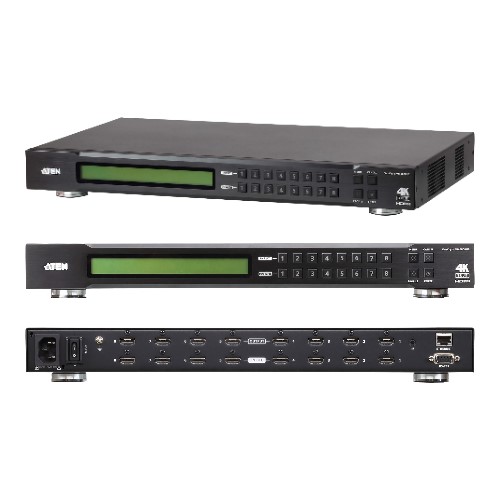

ATEN’s VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

Features

• Connects any of 8 HDMI sources to any of 8 HDMI displays
• Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
• Supports HDR10+
• Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
• View and control via ATEN Video Matrix Control App in a swift and agile way
• EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
• Signaling rates up to 6 Gbits for flawless true 4K output
• Supports Dolby True HD and DTS HD Master audio
• HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
• Supports Consumer Electronics Control (CEC)
• Power-on Detection – switches to the next powered-on source when one source is powered off
• ESD protection for HDMI
• Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
• Firmware upgradeable
• Rack mountable (1U design)
