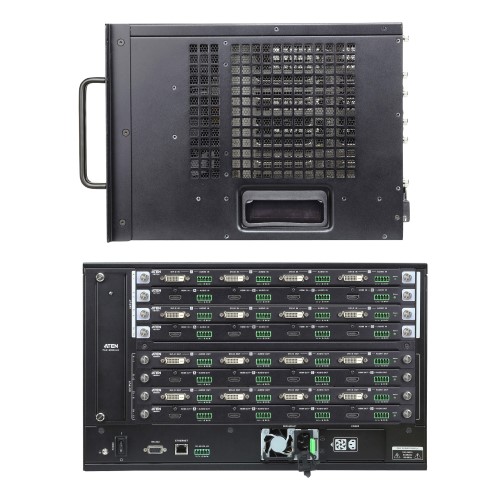

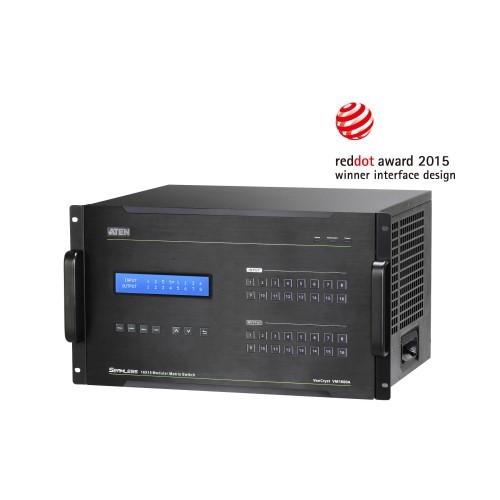

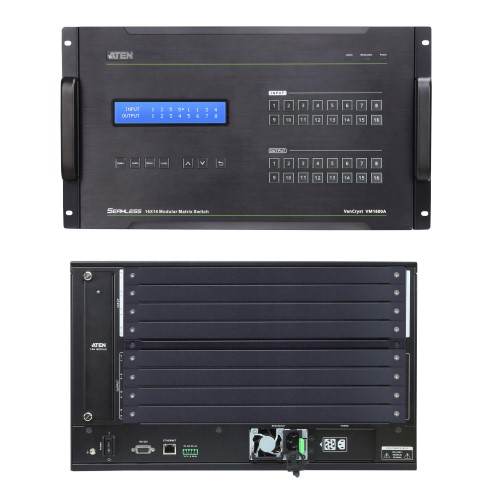

The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.

Features

• Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix I/O Boards
• Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet
• 4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
• Scaler–features a (4K) video scaling function to convert input resolutions to the display’s native resolutions
• Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
• Video wall –allows you to create custom video wall layouts via intuitive web GUI
• Calendar-based scheduling – allows profile playing based on the pre-set schedule and RTC
• EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
• Audio-enabled –HDMI audio can be extracted and stereo audio can be embedded
• Bi-directional RS-232 channel – allows you to control the connected serial devices simultaneously through the web GUI Supports redundant power module for higher reliability
• Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability
• Optional redundant power supply –ensures reliability for mission-critical applications
• Long-Reach mode up to 1080p@150m – enables extended AV transmission using
• the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders
• HDCP 2.2 Compatible
• HDMI: 3D, Deep Color, 4K
• Consumer Electronics Control (CEC) supported
• Rack mountable (6U design)
