Equipped with large LCD display (128 x 64 pixels) with Chinese/English languages, which can clearly show the system testing status, the quantity of connected microphone units, the operation modes, and the volume/sensitivity of conference microphones.
One control unit can connect 50 sets of microphone units. BXB’s extension power supply can be applied to add more. The maximum quantity of connected microphone unit is 1009 sets.
Equipped with digital coding. Each unit’s ID number and the identity of chairman/delegate can be set by main control unit or graphical software directly.
Equipped with TCP/IP protocol control to connect by PC or mobile devices via wired or wireless modes.
Integrated with BXB’s authorized iPhone/iPad APP software to easily realize mobile conferencing control.
Equipped with USB connector to operate with PC for playing music or recording.
Equipped with 4 sets of RJ45 ports. Each port possesses circuit protection mechanism to make the system safer and more stable.
Equipped with RS-232 connector to operate with PC and other controlling equipments.
Applied with commonly-used Cat-5e cables to ease the maintenance.

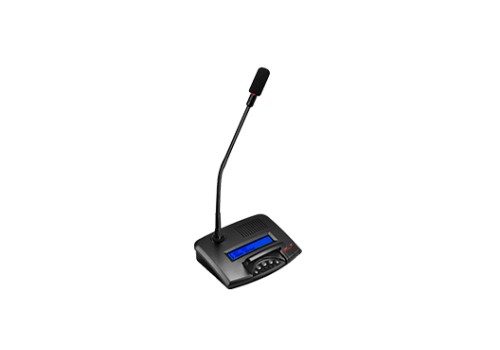

FCS-6315 Table-top Chairman Unit- with LCD Display
Features
Equipped with DSP chip: sensitivity adjustment for each microphone.
Equipped with 2 x 24 digit LCD display to show operation modes and speaking statuses.
Equipped with built-in 2.5” x 1.5” HI FI speaker. When the microphone is operated, the speaker would be auto-off to avoid sound feedback.
With built-in voting interface with five buttons in the lid. It can operate with BXB’s graphical control software to do voting function.
Equipped with 2 sets of Ø3.5mm recording plugs. Attendees can connect recording equipment with the unit directly as well as connect earphone.
There’s no limitation of chairman unit’s quantity; the position and sequence of chairman unit can also be random.
FCS-6316 Table-top Delegate Unit- with LCD Display
Features
Equipped with DSP chip: sensitivity adjustment for each microphone.
Equipped with 2 x 24 digit LCD display to show operation modes and speaking statuses.
Equipped with built-in 2.5” x 1.5” HI FI speaker. When the microphone is operated, the speaker would be auto-off to avoid sound feedback.
With built-in voting interface with five buttons in the lid. It can operate with BXB’s graphical control software to do voting function.
Equipped with 2 sets of Ø3.5mm recording plugs. Attendees can connect recording equipment with the unit directly as well as connect earphone.
Able to set microphone auto-off as 10-99 seconds after the speaker finish speaking.
